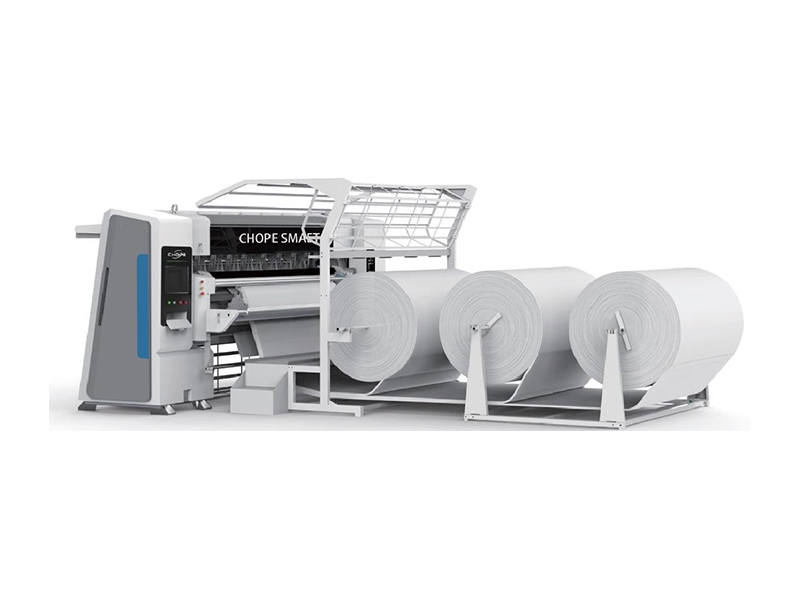

CHOPE-8W FULL-AUTOMATIC ULTRA-HIGH SPEED MULTI NEEDLE QUILTING MACHINE
Particulars / Design
| CHOPE-8W TECHNICAL PARAMETERS | |
| POWER | 12KW |
| MAIN SHAFT SPEED | 600-1500RPM |
| DIMENSION(L*W*H) | 7000X5000X2500 |
| PRODUCTION SPEED | 80-360M/H |
| QUILTING WIDTH | 2400MM |
| QUILTING THICKNESS | ≤80MM |
| STITCH LENGTH | 3-8(MM) |
| NEEDLETYPE | 24/180,23/160,22/140,21/130 |
| SPACE BETWEEN NEEDLES | 12.7MM |
| SPACE BETWEEN NEEDLE ROWs | 76.2+76.2(6")/76.2+50.8(5") |
| MAX HORIZONAL MOVEMENT | 13 inches(330.2MM) |
| VOLTAGE | 380V/220V 60HZ/50HZ |
| GROSSWEIGHT | 6500KG |
| PRESS PLATE ADJUSTMENT RANGE | 2-9MM |
Product Information
The max. speed is up to 1500RPM,which is one of the highest speed models in the global quilting industry.
Increased 12% of weight compared with the similar type of products in the market: 6.5 tons tokeep more stable and less vibration performance when running at high speed.

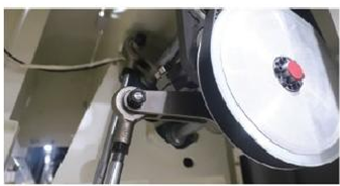

Ф35mm main shaft; Ф40mm beam shaft; the needle bar and press plate shafts are enlargedabout 16.7% and 12.5% than those of the common model.
JapaneseNSKbrand's main shaftbearings, HlWIN brand's linear guides.

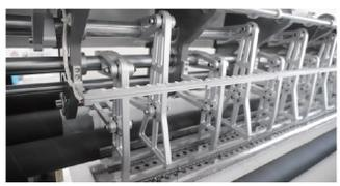

The press plate is controlled by high digital adjustment.
Quilting data can be integrated into the factory's MES system.
Remote control system: diagnoses problems and makes adjustments instantly.
Built-in maintenance tips: life span ofwearing parts and oiling frequency.
