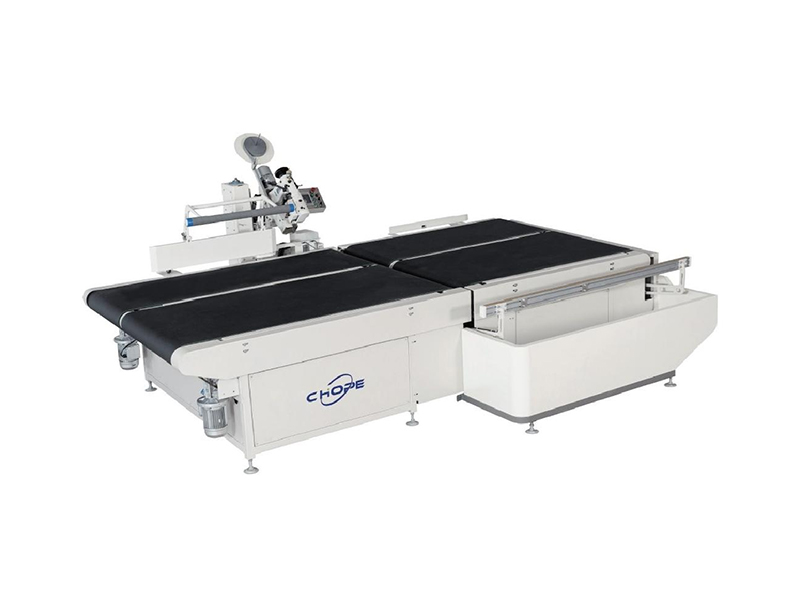

CHOPE-5H AUTOMATIC TAPE EDGE MACHINE
Particulars / Design
| CHOPE-5H TECHNICAL PARAMETERS | |
| POWER | 1KW |

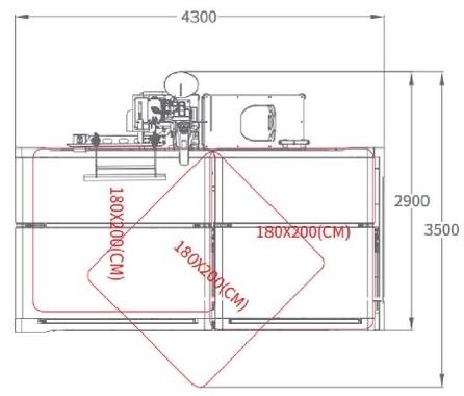

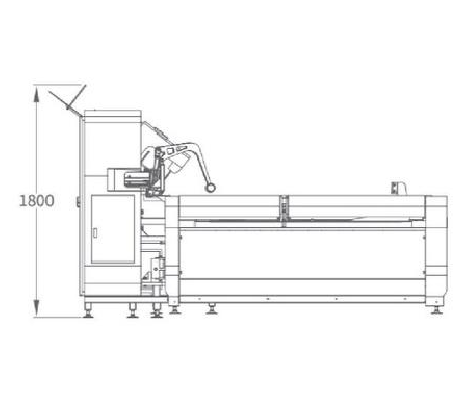

| MACHINE TABLE SIZE | 4300×1800×900 |
| HEAD SPEED | 1400RPM |
| PRODUCTION SPEED | 15-25PCS/H |
| QUILTINGTHICKNESS | 40MM-500MM |
| STITCH LENGTH | 3-7MM |
| HEAD LIFT RANGE | 0-500MM |
| AIR PRESSURE | 0.6-1.0MPA |
| VOLTAGE | 380V50HZ 220V50HZ 3PHASE |
| GROSSWEIGHT | 1700KG |
Product Information

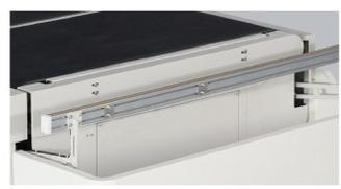

Ergonomic design: lt has the function of mattress positioning, whi-ch eliminates manual push and pull operationsreduces labor inten-sity and can effectively solve the problem of mattress offset
Automatic flipping and turning mattress, effectively improve the p-roduction efficiency and mattress quality, Themachine has a numbe-r of national patents

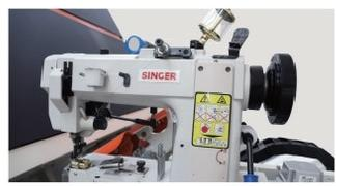

The whole machine adopts servo system, more precise sewing and lo-wer failure rate
