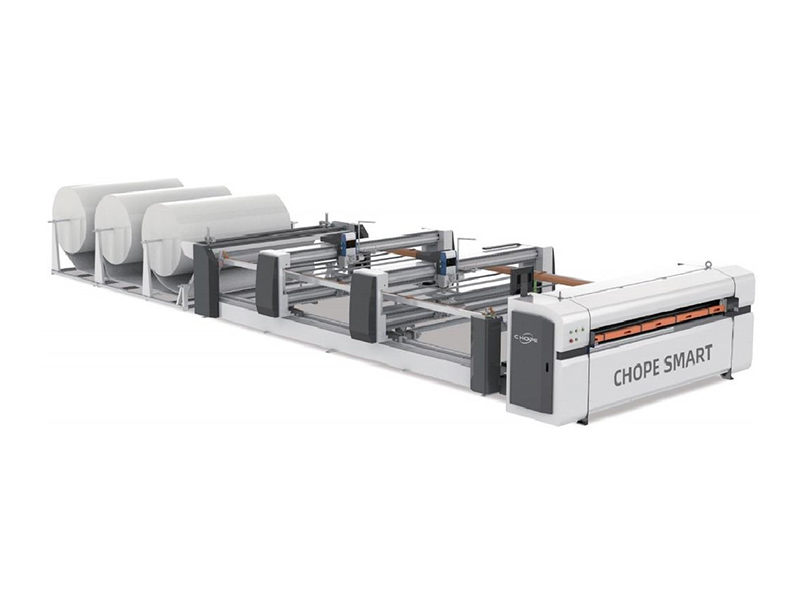

CHOPE-5D-2L DOUBLE BEAM DOUBLE HEAD CONTINUOUS QUILTING MACHINE
Particulars / Design
| CHOPE-5D-2L TECHNICALPARAMETERS | |
| POWER | 13KW |
| MAIN SHAFT SPEED | 3000RPM |

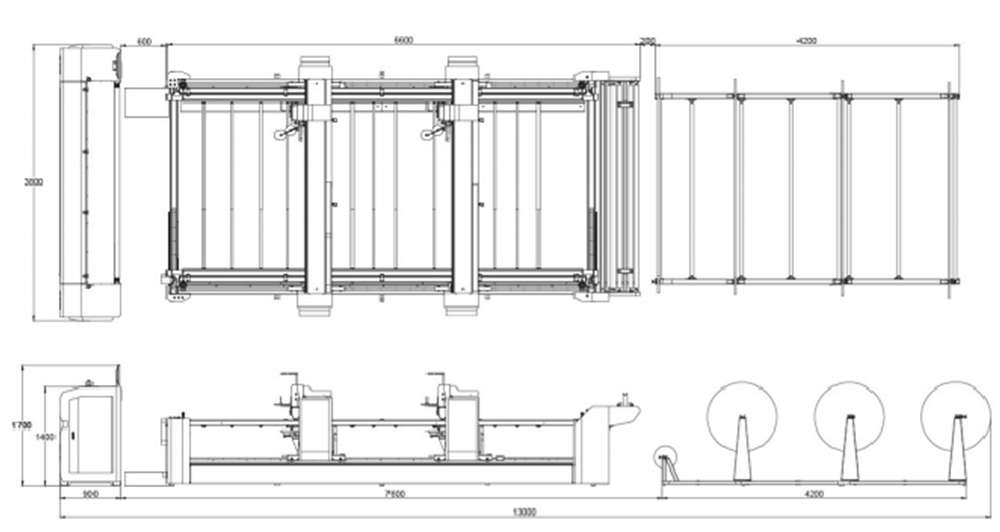

| DIMENSION(L*W*H) | 13000X3800X1700 |
| QUILTING WIDTH | 2400MM |
| QUILTING THICKNESS | ≤80MM |
| STITCH LENGTH | 3-9(MM) |
| VOLTAGE | 380V/220V 60HZ/50HZ |
| GROSSWEIGHT | 4000KG |
Product Information
Equip with DURKOPp sewing head, to increase operate speed, the max-imum speed up to 3000rpm

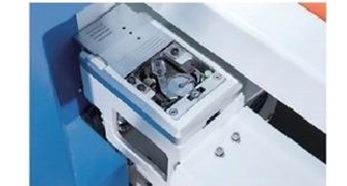

Adopt imported large rotary hook,arbitrary jump quilting, automatic thread breaking detection, Pattern compensation available at a-ny point by touch screen
Using a professional customized industrial computer system, it canaccurately quilt various complex patterns
The independent double saddle structure design and double control system, are able to quilt two bedspanel at the same time,thus the working eficiency is double. The floor space is only 1.2 times of traditionaltype, while the output is double
Presser foot can be adjusted according to material thickness
Able to quilt 360" jump design ,With large memory, able to store more than 100 thousand of patternsa
