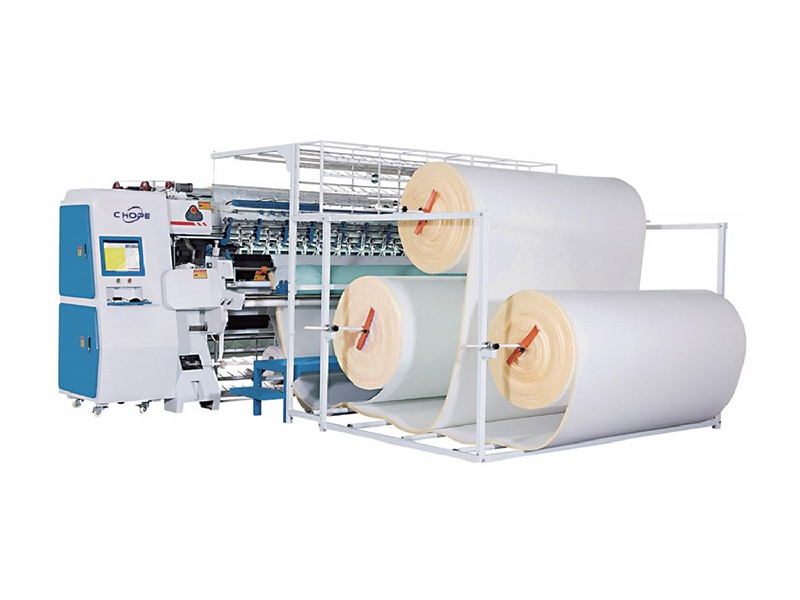

CHOPE-4W COMPUTERIZED CHAIN STITCH MULTI-NEEDLEQUILTING MACHINE
Particulars / Design
| CHOPE-4W TECHNICALPARAMETERS | |
| POWER | 8.5KW |
| MAIN SHAFT SPEED | 500-1200RPM |

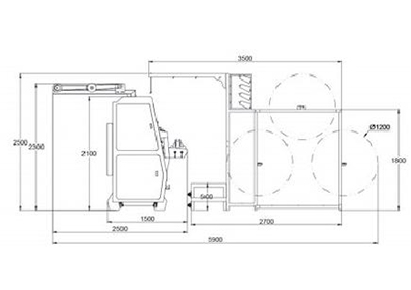

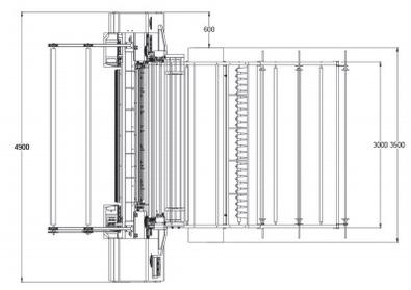

| DIMENSION(L*W*H) | 5900×4900×2500 |
| PRODUCTION SPEED | 60-260M/H |
| QUILTING WIDTH | 2450MM |
| QUILTING THICKNESS | ≤80MM |
| STITCH LENGTH | 3-8(MM) |
| NEEDLETYPE | 24/180,23/160,22/140,21/130 |
| SPACE BETWEEN NEEDLES | 25.4MM |
| SPACE BETWEEN NEEDLE ROWs | 76.2+76.2(6")/76.2+50.8(5") |
| MAX HORIZONAL MOVEMENT | 13 inches(330.2MM) |
| VOLTAGE | 380V/220V 60HZ/50HZ |
| GROSSWEIGHT | 4800KG |
Product Information
Advanced computerized control system and mechanicalmanufacturing processing,improve the speed and output

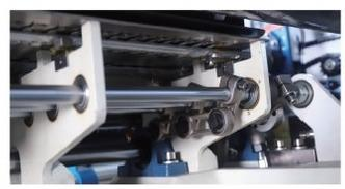

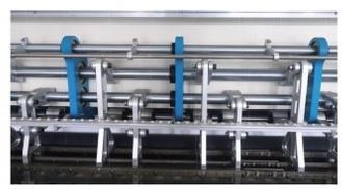

Needle bar and press plate adopt double rocker mechanism withoutcam, avoid the lube and dirty thefabric effectively.
The main shaft is controlled by freguency corverter for automaticallylifting the needle, and the saddle and roler are drivenby servo,Qullting180° pattern, 3é0 pattern, continuous pattern, tack jump pattern.
Exclusive innovation: Automatic lubricating oil system, can better improve the work efficiencyand service life of parts

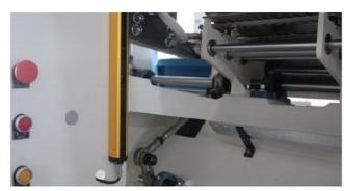

Adopt advanced infrared detection to detect the up and down thread, machine stop automatically whenthread break
