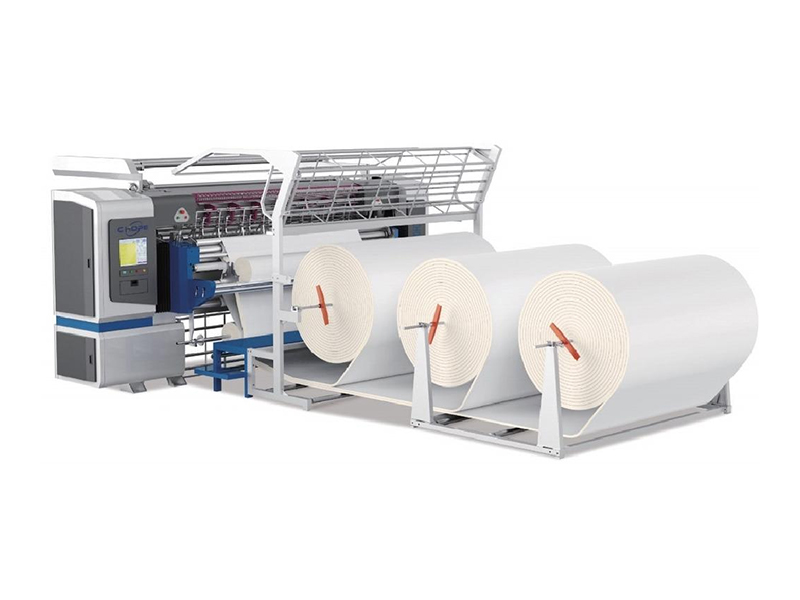

CHOPE-6W COMPUTERIZED CHAIN STITCH MULTI-NEEDLE QUILTING MACHINE
Particulars / Design
| CHOPE-6W TECHNICALPARAMETERS | |
| POWER | 11KW |
| MAIN SHAFT SPEED | 600-1400RPM |

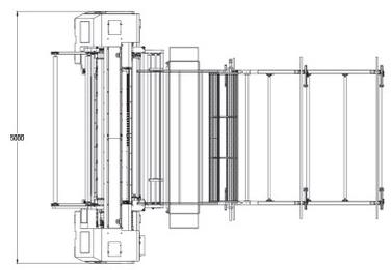

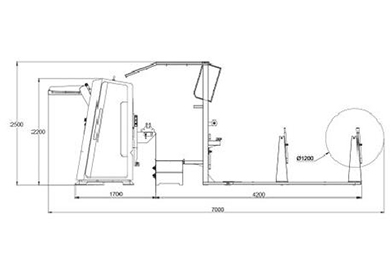

| DIMENSION(L*W*H) | 7300X4900X2500 |
| PRODUCTION SPEED | 80-330M/H |
| QUILTING WIDTH | 2450MM |
| QUILTING THICKNESS | ≤80MM |
| STITCH LENGTH | 3-8(MM) |
| NEEDLETYPE | 24/180,23/160,22/140,21/130 |
| SPACE BETWEEN NEEDLES | 12.7MM/25.4MM |
| SPACE BETWEEN NEEDLE ROWs | 76.2+76.2(6")/76.2+50.8(5") |
| MAX HORIZONAL MOVEMENT | 13 inches(330.2MM) |
| VOLTAGE | 380V/220V 60HZ/50HZ |
| GROSSWEIGHT | 5800KG |
Product Information
Exclusive innovation:the needle distanceis 0.5 inch(halfinch).which offer more options for the need of pattern combination

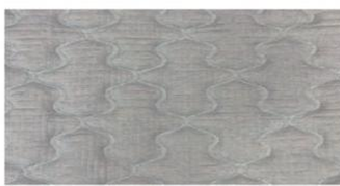

The needle positions of the 1st and 3rd rows can be arrangedarbitrarily and are not affected by the position of the needlebar supporterQuilting: 180" pattern, 360°pattern, continuouspattern,tack jump pattern.

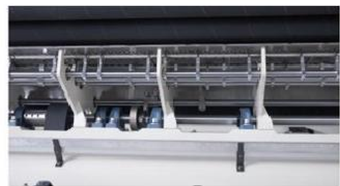

The swing arm of the needle bar active swing bar and the needle bar passive swing bar arelengthened, the needle swing is smaller and the needle hole on the fabric is smaller. At the sametime, it is made of special aluminum material, which makes the machine run faster and has less vibration

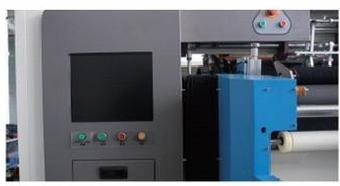

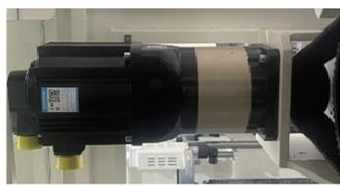

All three axis are controlled by servo system, and the quilting pattern is more precise. The extrabuttons control the forward and reverse rotation of main shaft, making it easier to adjust the hook/ looper
