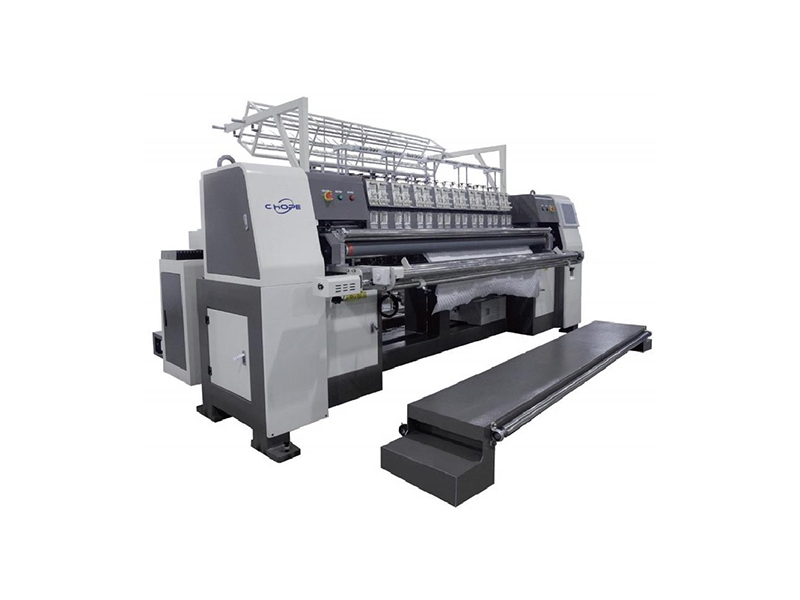

CHOPE-WT2 AUTOMATIC MULTI-FUNCTIONAL BORDER QUILTING MACHINE
Particulars / Design
| CHOPE-WT2 TECHNICALPARAMETERS | |
| POWER | 12KW |
| MAIN SHAFTSPEED | 600-1200RPM |

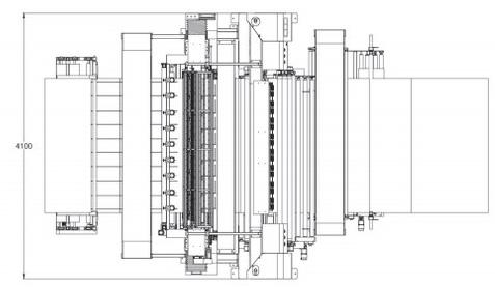

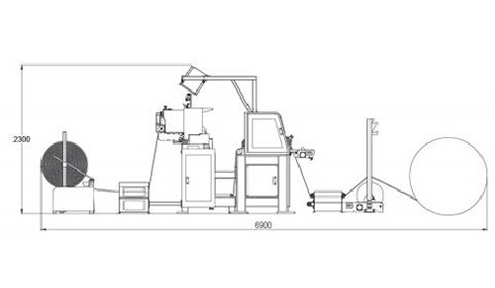

| DIMENSION(L*W*H) | 6900X4000X2300 |
| PRODUCTION SPEED | 20-300M/H |
| QUILTING WIDTH | 2400MM |
| QUILTING THICKNESS | ≤30MM |
| STITCH LENGTH | 3-8(MM) |
| NEEDLE TYPE | 22/140,21/130 |
| SPACE BETWEEN NEEDLES | 6.35MM(FRONT),101.6(BACK) |
| SPACE BETWEEN NEEDLE ROWS | 76.2,76.2(6") |
| MAX HORIZONAL MOVEMENT | 13 inches (330.2MM) |
| VOLTAGE | 380V/50HZ |
| GROSS WEIGHT | 4800KG |
| PRESS PLATE ADJUSTMENT RANGE | 2-9MM |

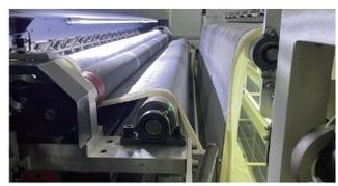

Product Information
Exclusive innowation: The machine has the functions of dotting,border decoratiwe ,linear and slitting system, can automatically cut andfinished rolled products, which is very practical (Patented products).
The front-end process of the machine can automatically cut the bottom line and upper thread,and at the same time,
it can be set to automatically switch between 3 oolors of upper thread.

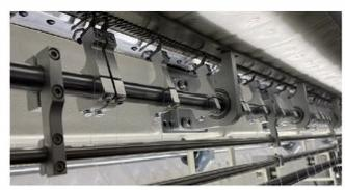

The straight-line quiliting and cutting parts can operate independently,which is more convenient for machining linear ribbons (linear spacing 6.35mm)

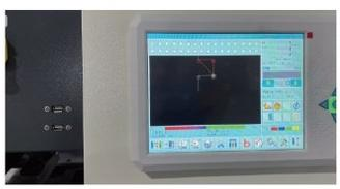

The control system can make embroldery pattern, large memory capacity, and fiexible pattern changes
The back straight quilting and slitting device is linked with the front control systemmakingg the front and rear combination patterns more precise
