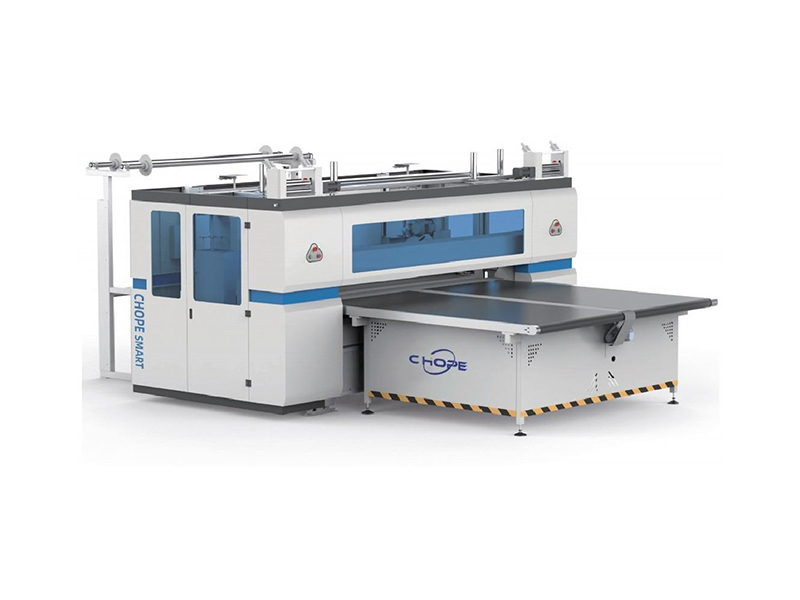

CHOPE-4FC AUTOMATIC FOUR-SIDE HEMMING MACHINE
Particulars / Design
| CHOPE-4FC TECHNICALPARAMETERS | |
| POWER | 11K |

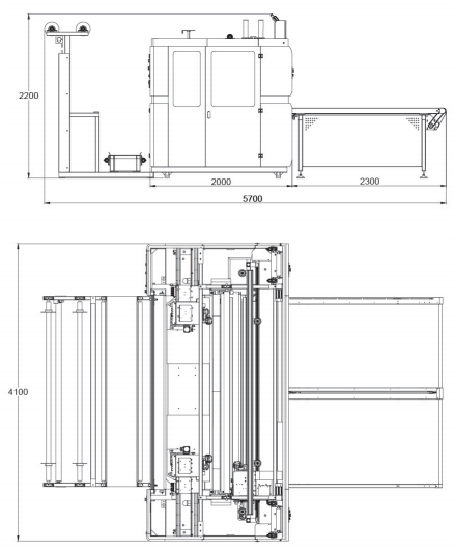

| DIMENSION(L×W×H) | 5700×4100×2200 |
| PRODUCTION SPEED | 240PCS/H |
| MAXIMUM SEWING WIDTH | 2350MM |
| MINIMUM SEWING WIDTH | 1300MM |
| MAXIMUM SEWING THICKNESS | ≤80MM |
| STITCH LENGTH | 3-12(MM) |
| VOLTAGE | 380V/50HZ |
| GROSS WEIGHT | 3500KG |
Product Information
Add sealing edge function, non shuttle working feed-out material with over-lock four sides
Full digital operation, the machine automatically adjusted the requiredsize by inputting data,and the scraps are discharged automatically

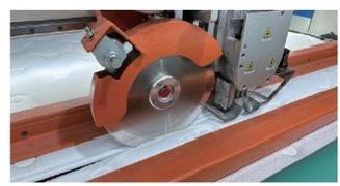

The function that to confirm the cutting length& width bby infrared.realize high cutting precision ,thus the cut on materials are very neat

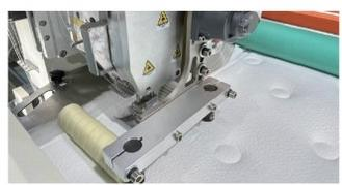

Presser foot can be adjusted according to material thickness

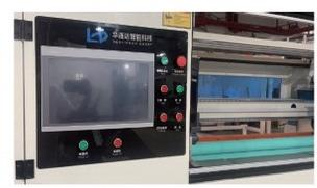

Using touch screen operation interface, simple and convenient operation
The system has many functions, such as output counting, qullting size setting andneedle spacing setting
