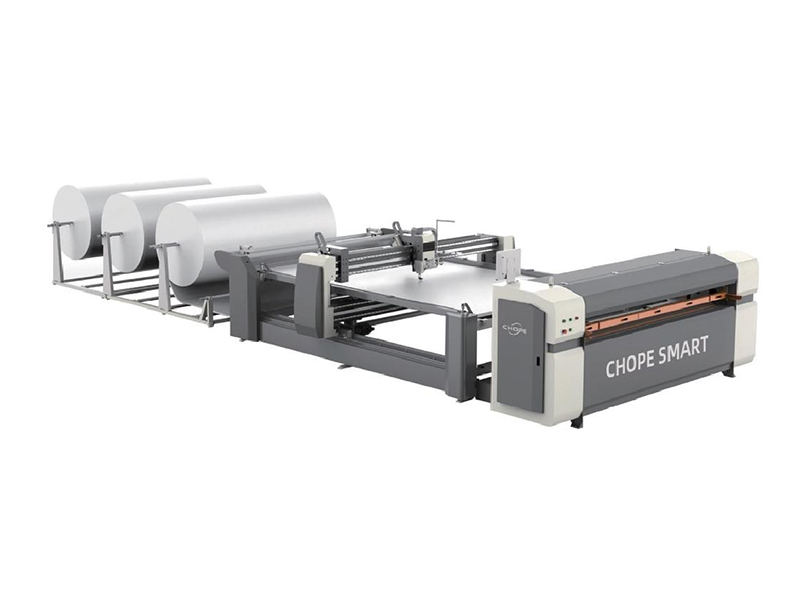

CHOPE-6D AUTOMATIC COMPUTERIZED SINGLE NEEDLEQUILTING MACHINE
Particulars / Design
| CHOPE-6D TECHNICALPARAMETERS | |
| POWER | 8.5KW |
| MAIN SHAFT SPEED | 3000RPM |

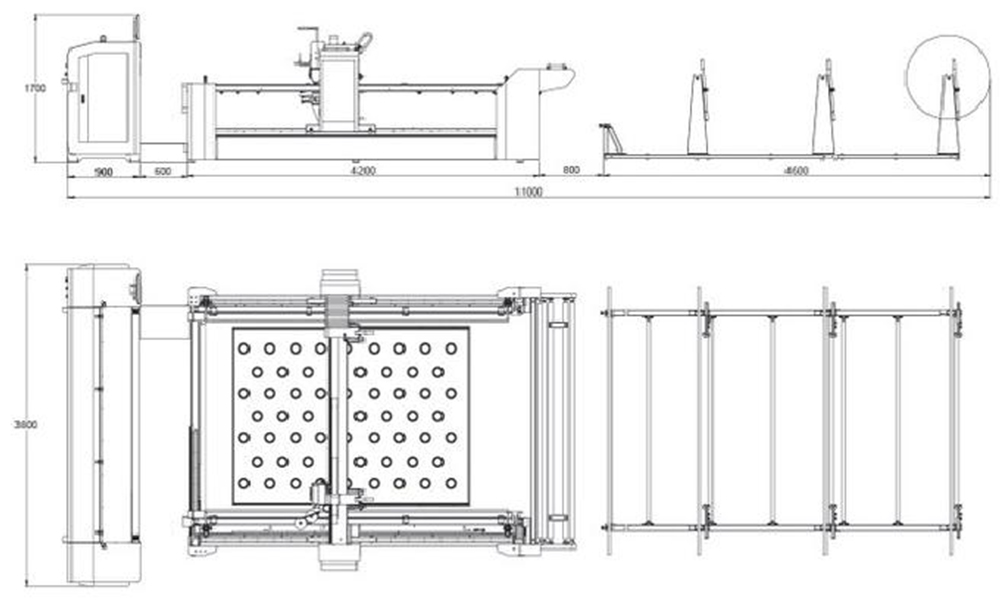

| DIMENSION(L*W*H) | 11000X3800X1700 |
| QUILTING WIDTH | 2400MM |
| QUILTING THICKNESS | ≤80MM |
| STITCH LENGTH | 3-9(MM) |
| VOLTAGE | 380V/220V 60HZ/50HZ |
| GROSSWEIGHT | 3000KG |
Product Information
Optional qulting fabric craft border and cross-cutting baseline, making the post-process more convenient and accurate
Both ends of the machine head increase the loading material scuttering device, random head linkage.can make the frame process line and cutting tool position more accurate (patented products, industry first).
Equip with DURKOpp sewing head to increase operating speed and stablity. The maximum speed is up to 3000 RPM

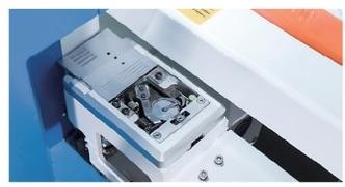

Adopt imported large rotary hook,arbitrary jump quilting, automa-tic thread breaking detection, Pattern compensationavailable at a-ny point by touch screen

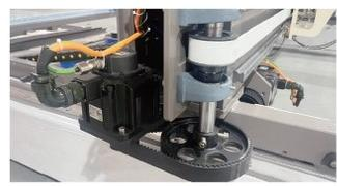

Presser foot can be adjusted according to material thickness
Able to quilt 360* jump design ,With large memory, able to store more than 100 thousand of patterns
