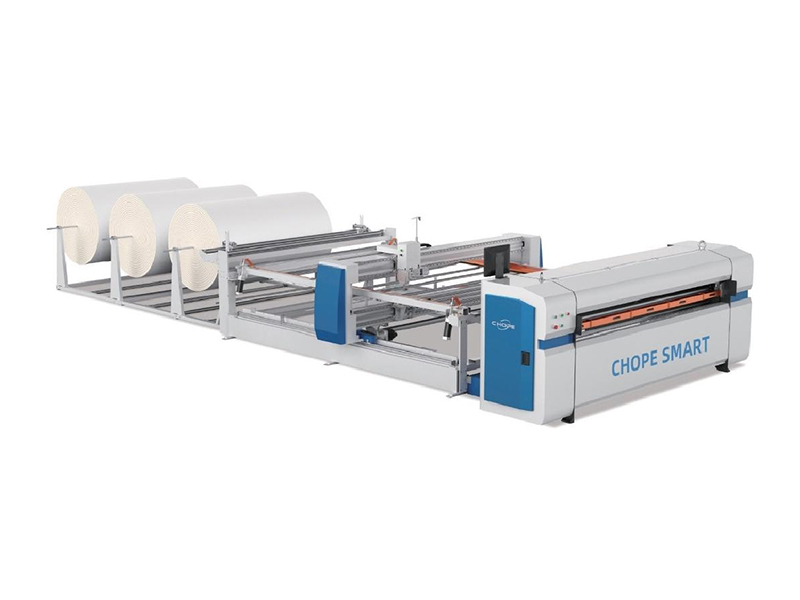

CHOPE-5D AUTOMATIC COMPUTERIZED SINGLE NEEDLE QUILTING MACHINE
Particulars / Design
| CHOPE-5D TECHNICALPARAMETERS | |
| POWER | 7.5KW |
| MAIN SHAFT SPEED | 3000RPM |

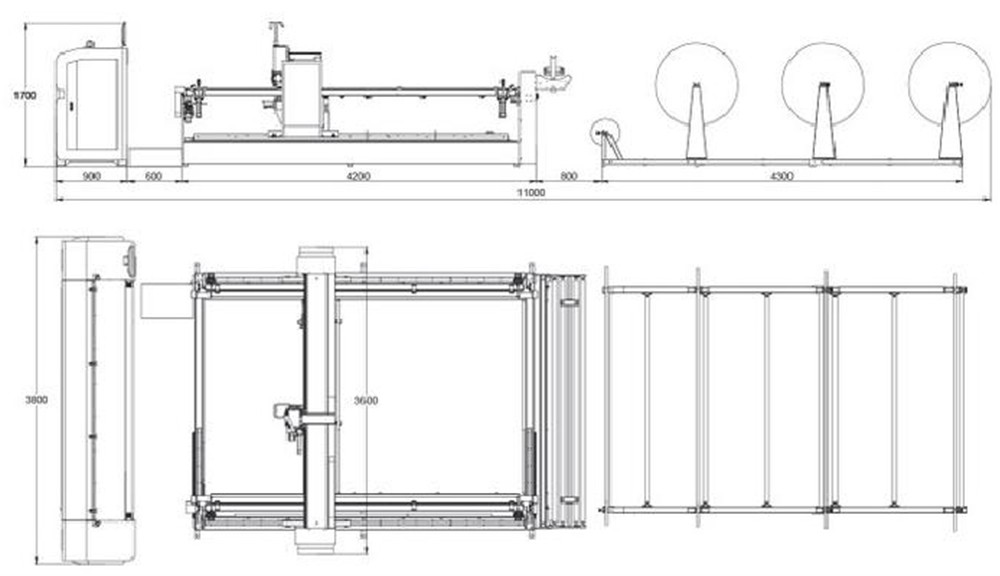

| DIMENSION(L*W*H) | 11000X3800X1700 |
| QUILTING WIDTH | 2400MM |
| QUILTING THICKNESS | ≤80MM |
| STITCH LENGTH | 3-9(MM) |
| VOLTAGE | 380V/220V 60HZ/50HZ |
| GROSSWEIGHT | 3000KG |
Product Information
Equip with DURKOPP sewing head, to increase operate speed, the max-imum speed up to 3000rpm

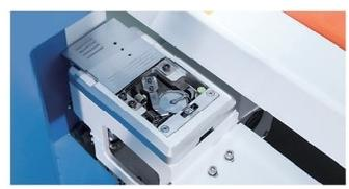

Adopt imported large rotary hook,arbitrary jump quilting, automa-tic thread breaking detection, Pattern compensation available at a-ny point by touch screen
Using a professional customized industrial computer system, it canaccurately quilt warious complex patterns
Presser foot can be adjusted according to material thickness
Able to quilt 360" jump design ,With large memory, able to store more than 100 thousand of patterns
